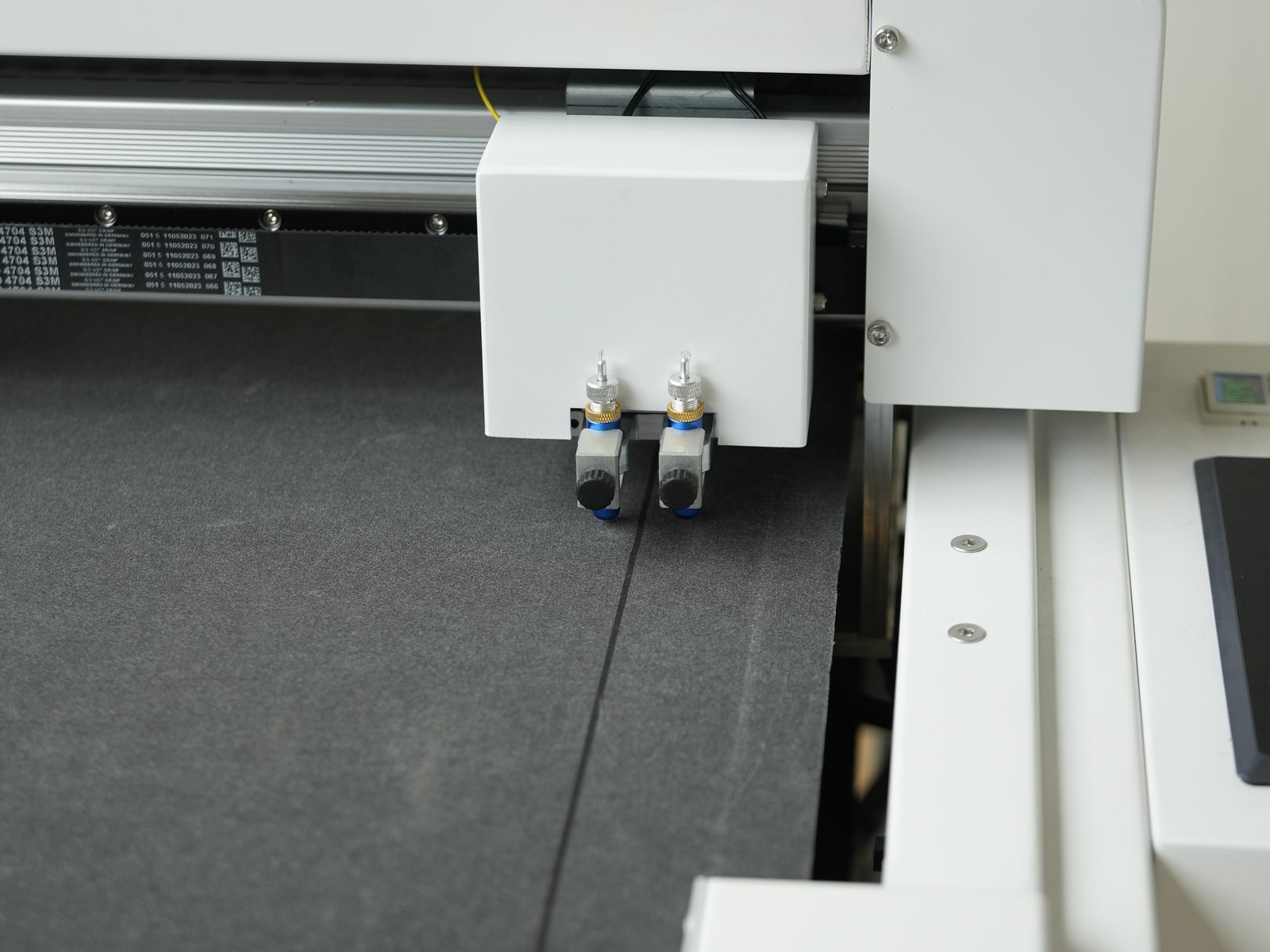

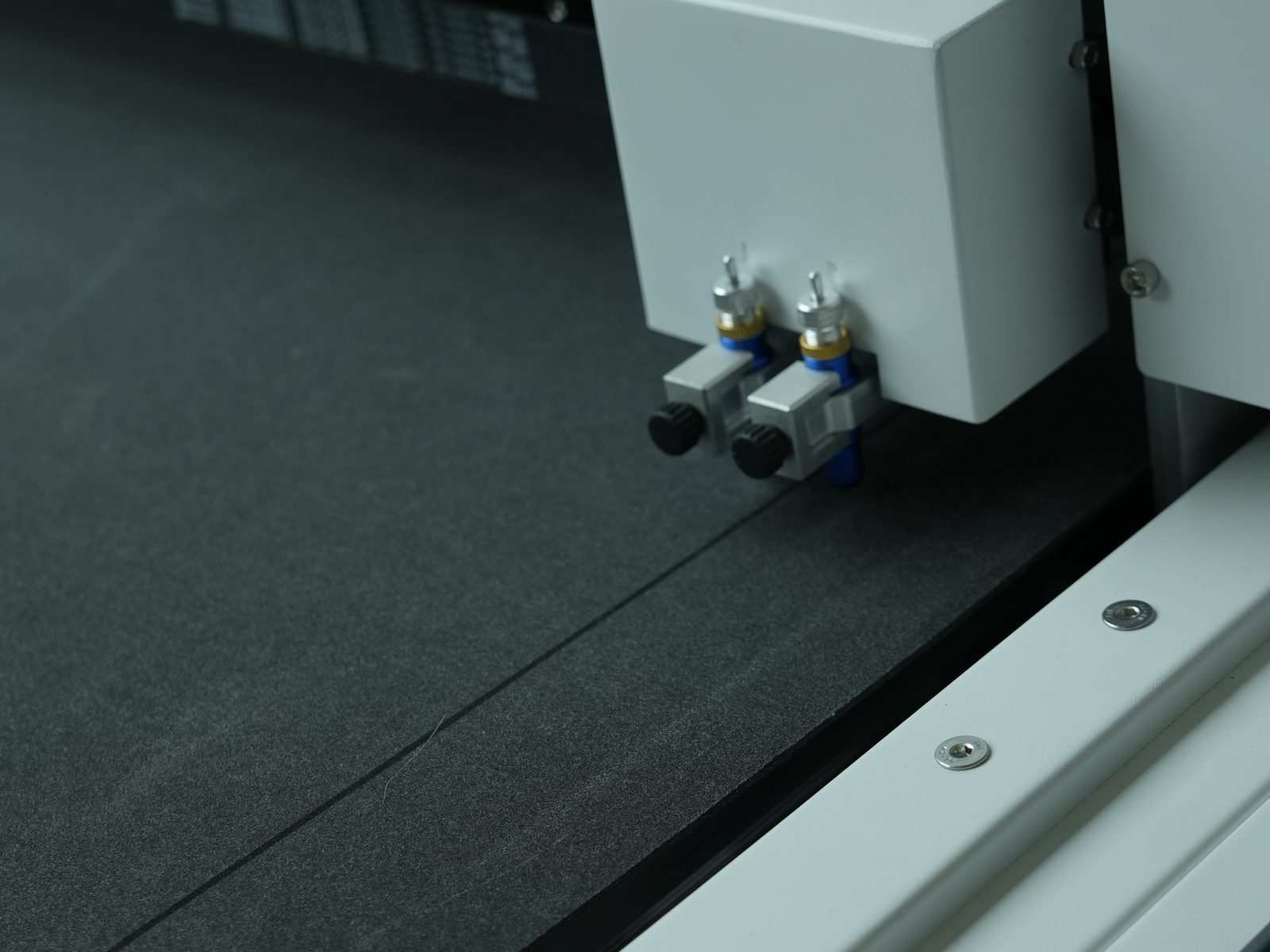

Dual-knife head
A drag knife and a half-cut knife share one head and swap in under 15 seconds, so full cuts on large panels and half cuts on trim parts run in the same job.
An auto-feeding flatbed cutter with a dual-knife head, dual servo drive, vacuum bed and industrial touchscreen control for high-value film work.

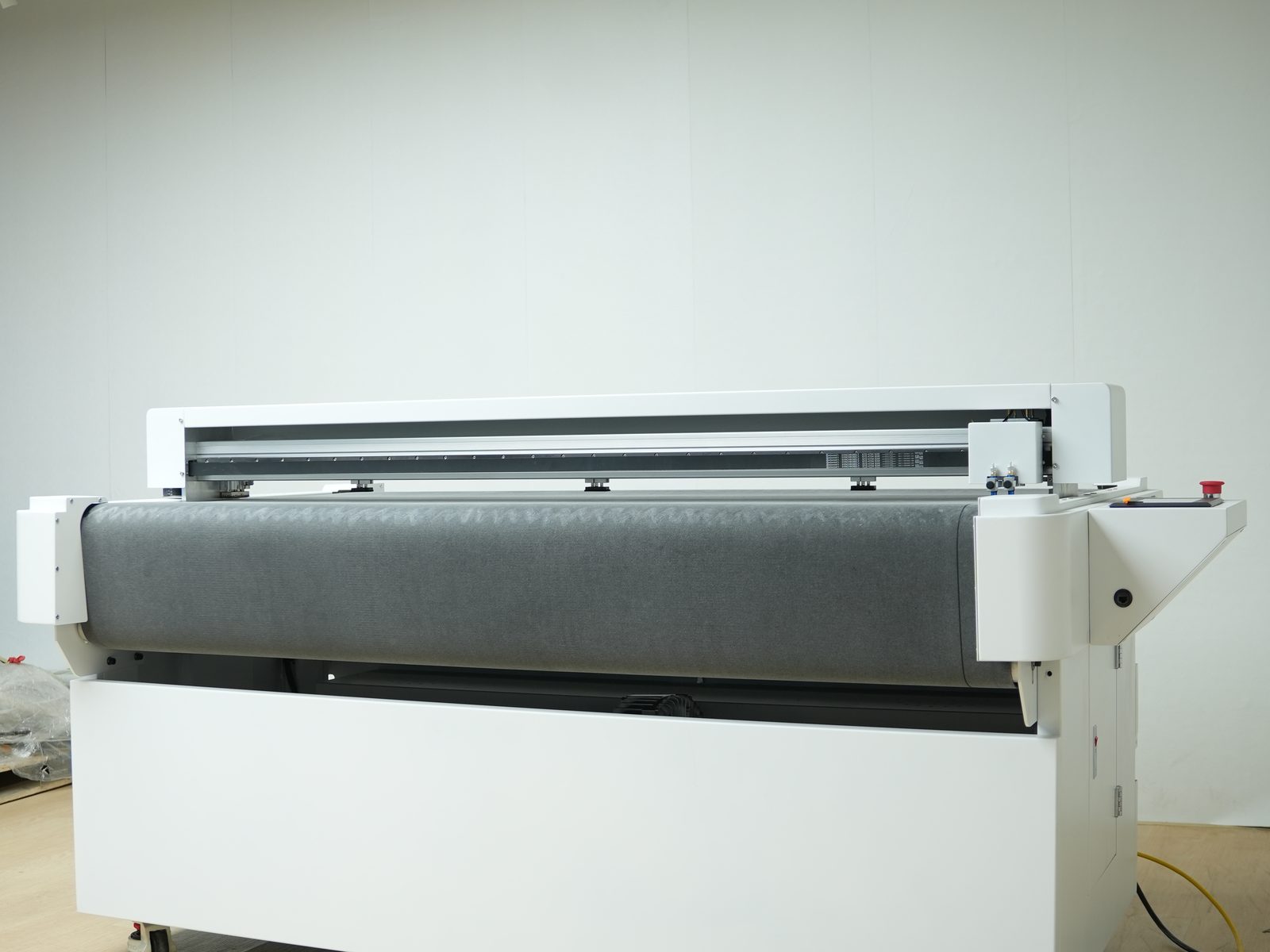

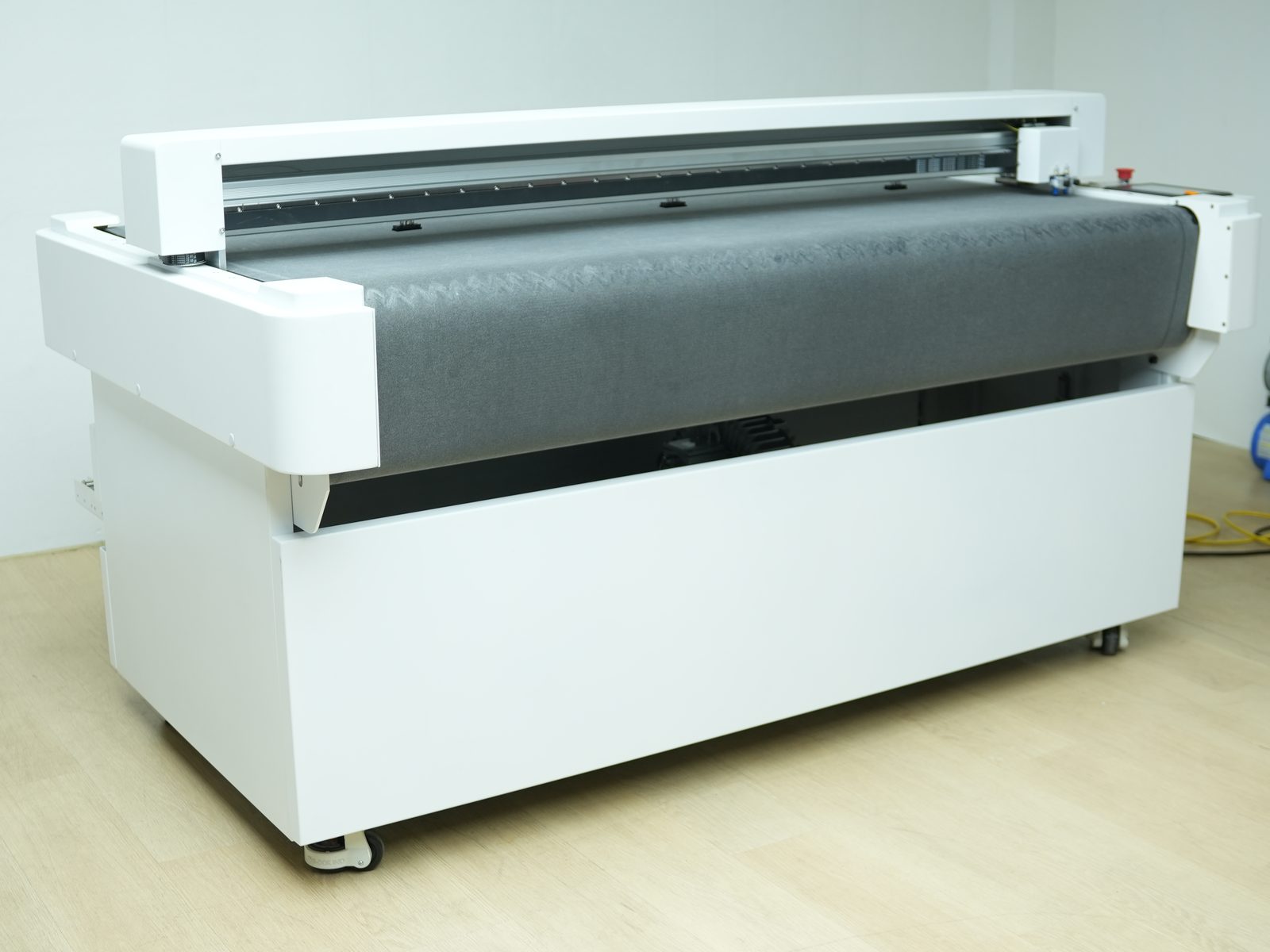

Auto-Feeding Flatbed
Dual-knife flatbed cutting on a vacuum bed

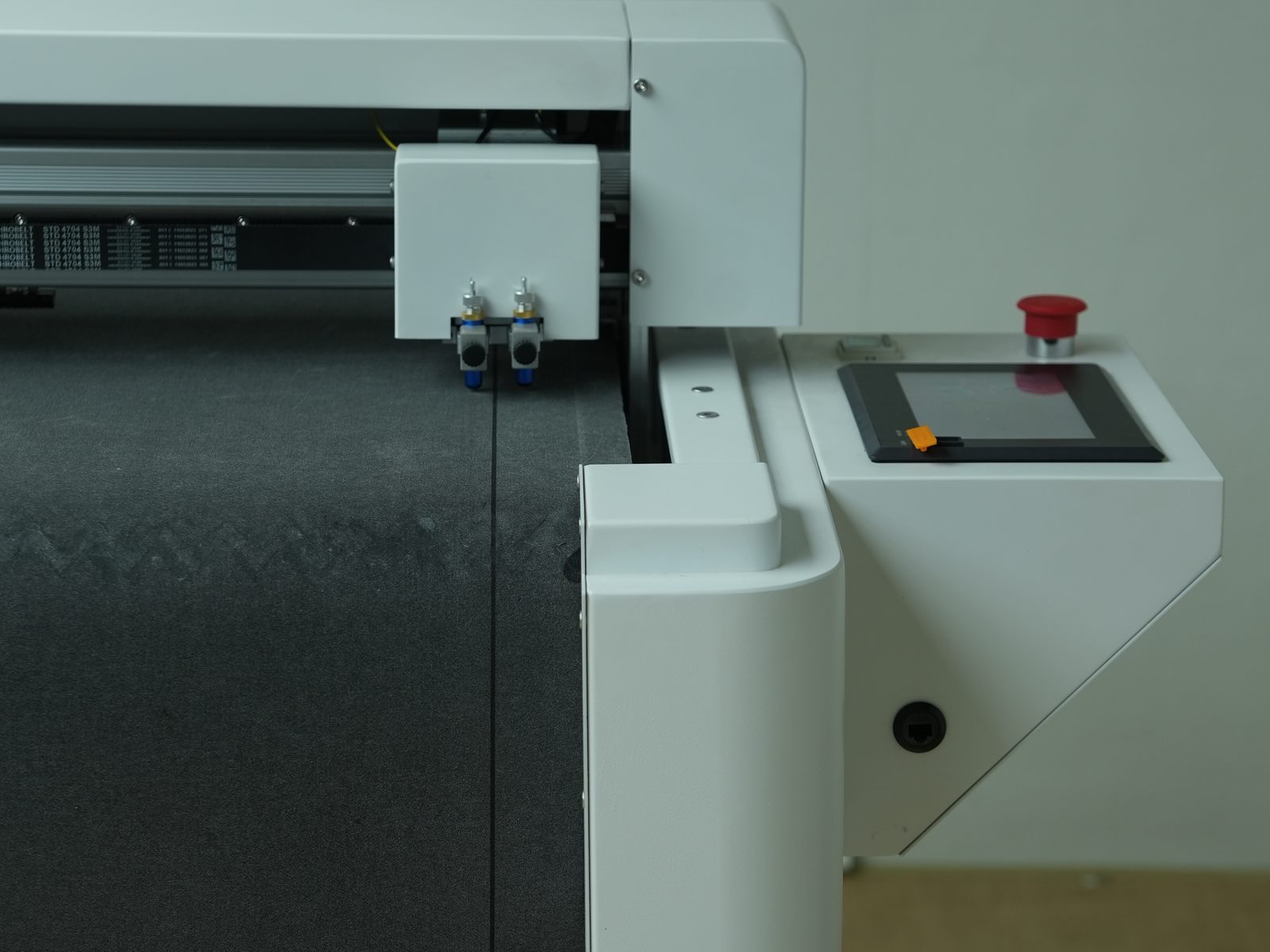

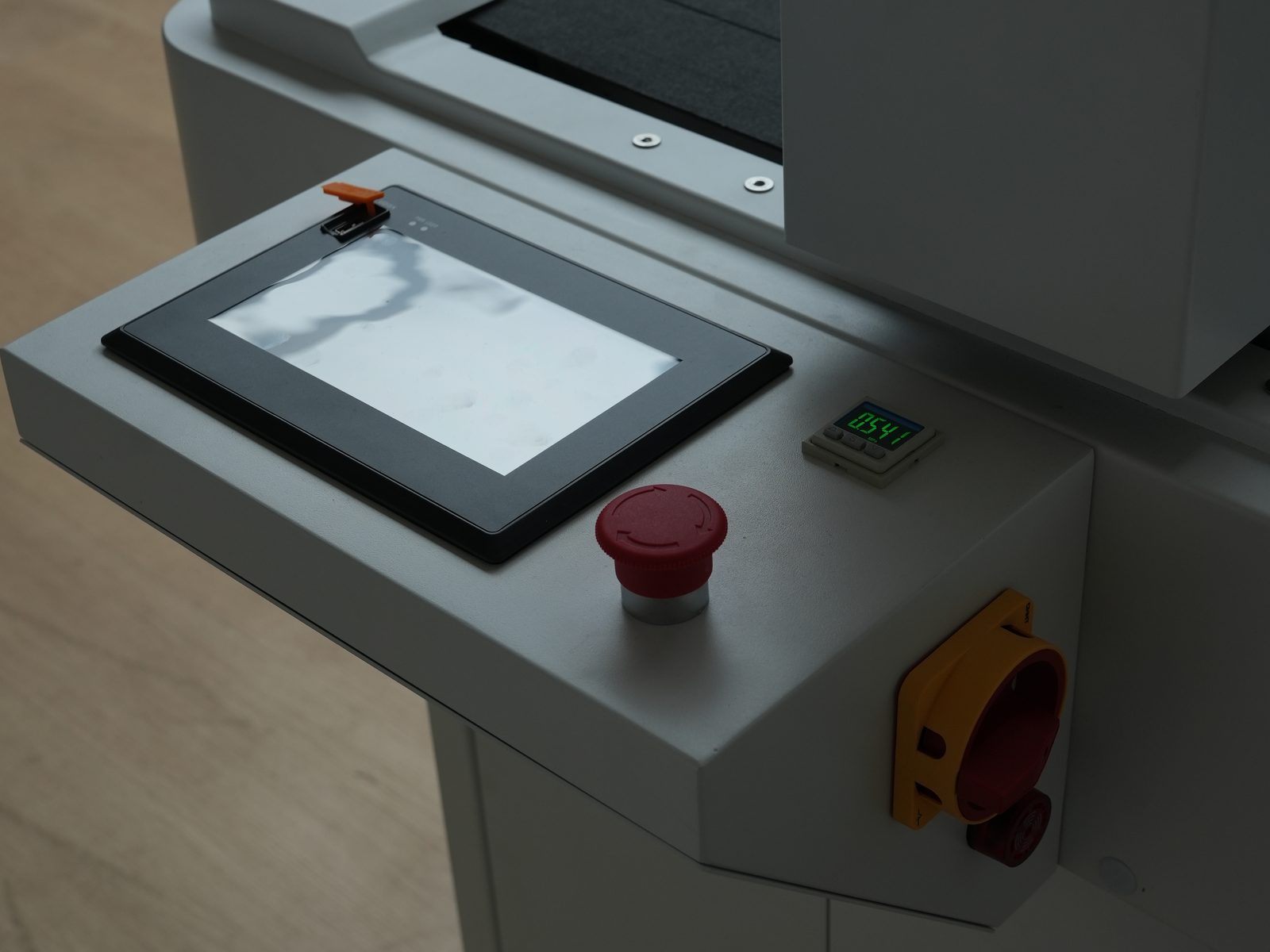

The ZT1660 is an auto-feeding flatbed cutter built around a 580 × 1550 mm vacuum working area and a multi-function head carrying both a drag knife and a half-cut knife. Digital servo motors drive both axes to 0.02 mm mechanical accuracy, and a 7-inch industrial touchscreen…
Power-off resume
If power drops mid-job the machine stores its position and resumes the same cut path, which protects a full sheet of high-value film instead of scrapping it.
Vacuum bed
Suction holds material flat across the whole 580 × 1550 mm area, so nothing shifts under the knife.
Product Specifications
| Cutting head | Drag knife + half-cut knife |
|---|---|
| Max cutting speed | 800 mm/s |
| Max cutting thickness | ≤ 2 mm soft material |
| Effective cutting area | 580 × 1550 mm (customisable) |
| Drive motors | Digital servo on both X and Y axes |
| Mechanical accuracy | 0.02 mm |
| Material hold-down | Vacuum suction |
| Data interface | USB / USB Ethernet |
| Operating system | Windows 10 / 8 |
| Machine size | 1050 × 2050 × 1250 mm (customisable) |
| Packing size | 1200 × 2200 × 1400 mm (customisable) |
| Machine weight | 400 kg |
| Power | 3.35 kW |
| Voltage / frequency | AC 220 V, 50 ± 1 Hz |
